1. General Discussion

1.1. Background

1.1.1. History

In September 1978, NIOSH and OSHA issued "Current Intelligent Bulletin Number 28", which recommended that vinyl bromide be considered as a potential human carcinogen in the workplace. In addition, they indicated that safe levels of exposure to carcinogens have not been demonstrated, but lowered exposure to carcinogens may, in general, decrease the probability of cancer development.

There is not an exposure standard for vinyl bromide at the present time. A target level of 1 ppm was selected because of limitations of analytical detection and because 1 ppm is the PEL for vinyl chloride (Ref. 5.1.).

1.1.2. Toxic effects

Laboratory studies have demonstrated that exposure to vinyl bromide caused angiosarcoma of the liver and other cancers in animals. At levels of 10 ppm, exposure induced lymph node angiosarcoma. Additionally, adverse health effects in animals attributed to vinyl bromide include central nervous system effects, cardiovascular effects, respiratory effects, skin effects, skeletal effects, and liver and spleen abnormalities. (Ref. 5.1.)

To date, there have been no reported cases of cancer in humans associated with exposure to vinyl bromide; however, vinyl bromide has been in commercial production in the United States only since 1971.

1.1.3. Uses

Industries which use vinyl bromide include: chemical and allied products, rubber and plastic products, leather products, fabricated metal products, and wholesale trade.

1.1.4. Approximately 360 workers are exposed to vinyl bromide and an additional 26,000 workers are potentially exposed (Ref. 5.1.).

1.1.5. Physical properties

CH₂CHBr         molecular weight         107

Vinyl bromide is a gas which is flammable and poses a dangerous fire risk. Its melting point is -138°C and its boiling point is 15.6°C. The specific gravity of vinyl bromide is 1.51. (Ref. 5.2.)

1.2. Detection limit, precision, sensitivity, and working range

1.2.1. The detection limit for the analytical procedure is 4 ng per injection. This is based on 1-µL injections.

1.2.2. The pooled coefficient of variation of the analytical method over the range equivalent to 1.0 ppm to 10 ppm based on the recommended air volume is 1.1%. (Section 4.1.)

1.2.3. The sensitivity of the analytical procedure at 1 ppm based on a 5-L air volume is 250 area units per µg/mL. The sensitivity is determined by the slope of the calibration curve. The sensitivity will vary with the particular instrument used in the analysis. (Section 4.2.)

1.2.4. The lower limit of the estimated working range is 0.2 ppm. The upper limit is dependent on the capacity of the charcoal.

1.3. Accuracy

1.3.1. The overall procedure must provide results that are within 25% of the true value or better at the 95% confidence level.

1.3.2. The recovery of analyte from the collection medium after storage must be 75% or better.

1.3.3. The overall procedure meets the above criteria. (Section 4.4.)

1.4. Advantages

The method of sampling is convenient. Charcoal tubes are easily transported to the laboratory through the mail. The analytical method is quick, and automation of the process is possible.

1.5. Disadvantages

It may be difficult to analyze for additional components on the same charcoal tube.

2. Sampling Procedure

2.1. Apparatus

2.1.1. An approved and calibrated personal sampling pump whose flow can be determined within ±5% at 0.2 L/min.

2.1.2. Charcoal tubes: Glass tube, with both ends heat sealed, 7.0 cm × 6-mm o.d. × 4-mm i.d., containing 100-mg front and 50-mg backup sections of 20/40 mesh coconut base charcoal. SKC Lot 106 or equivalent are adequate.

2.2. Reagents

None required

2.3. Sampling technique

2.3.1. Immediately before sampling, break the ends of the charcoal tubes. All tubes must be from the same lot.

2.3.2. Connect a charcoal tube to the sampling pump with flexible tubing. The short section of the charcoal tube is used as a backup section and should be positioned nearer the pump.

2.3.3. The tube should be placed in a vertical position during sampling to minimize channeling.

2.3.4. Air being sampled should not pass through any hose or tubing before entering the charcoal tubes.

2.3.5. Seal the charcoal tubes with plastic caps immediately after sampling.

2.3.6. With each batch of samples, submit at least one blank tube from the same lot used for samples. This tube should be subjected to exactly the same handling as the samples (break, seal, transport) except that no air is drawn through it.

2.3.7. Transport the samples (and corresponding paperwork) to the lab for analysis.

2.4. Breakthrough

At the sampling rate of 0.2 L/min, an atmosphere at 80% relative humidity containing 1 ppm vinyl bromide was sampled for 5 L with no breakthrough from the primary portion of the charcoal tube. If the concentration is thought to be extremely high in the workplace, two charcoal tubes may be connected in series and/or the sampling rate lowered, together with a smaller air volume sampled to prevent breakthrough.

2.5. Desorption efficiency

2.5.1. The desorption efficiency may vary from laboratory to laboratory and for each lot of charcoal.

2.5.2. The desorption efficiency at 8.8 µg loadings (0.4 ppm at recommended air volume) was 100%. The desorption efficiency at 17.5 µg loadings (0.8 ppm at recommended air volume) was 100%, and the desorption efficiency at 35 µg loadings (1.6 ppm at recommended air volume) was 95%. (Section 4.3.)

2.6. Recommended air volume and sampling rate

2.6.1. The recommended air volume is 5 L.

2.6.2. The recommended sampling rate is 0.2 L/min.

2.7. Interferences (sampling)

2.7.1. At the present time, it is unknown if any compound would severely interfere with the collection of vinyl bromide on charcoal. In general, the presence of other solvents will decrease the breakthrough volume for a particular solvent.

2.7.2. Any compound which is suspected of interfering in the collection or analysis should be listed on the sampling data sheet.

2.8. Safety precautions

2.8.1. Safety glasses should be worn when breaking the ends of charcoal tubes.

2.8.2. Do not provide any spark source from pumps or other equipment when working in environments containing flammable vapors.

2.8.3. Observe all usual safety practices when sampling in hazardous areas.

3. Analytical Procedure

3.1. Apparatus

3.1.1. Gas chromatograph equipped with a flame ionization detector.

3.1.2. Stainless steel column (20 ft × 0.125 in.) packed with 10% SE-30 on 80/100 mesh Chromosorb W (acid washed, silanized with dimethyl dichlorosilane). Other columns capable of performing the required separation may be used.

3.1.3. An electronic or mechanical integrator or some other method of determining peak area.

3.1.4. Vials (2-mL) that can be sealed with caps containing Teflon-lined septa.

3.1.5. Microliter syringe, 1-µL for injecting samples.

3.1.6. One-milliliter gas-tight syringe for preparing standards.

3.1.7. Volumetric flasks, convenient sizes for preparing standards.

3.2. Reagents

3.2.1. Carbon disulfide, spectroquality or better.

3.2.2. Vinyl bromide, pure or known concentration.

3.2.3. n-Heptane, spectroquality or better.

3.2.4. Purified helium carrier gas.

3.2.5. Purified hydrogen and air.

3.2.6. Desorbing reagent contains 0.1 mL n-heptane per liter of carbon disulfide.

3.3. Standard preparation

Standards are prepared by injecting with a gas-tight syringe an amount of vinyl bromide into a volumetric flask containing desorbing reagent. The parts-per-million value in air that this standard represents depends on the concentration of vinyl bromide used, the amount injected, and the size of volumetric flask. Standards should be near 1 ppm for a 5-L air volume.

3.4. Sample preparation

3.4.1. The front and back sections of each sample are transferred to separate vials.

3.4.2. Each section is desorbed with 1.0 mL desorbing reagent.

3.4.3. The vials are sealed immediately and allowed to desorb for 30 min with intermediate shaking.

3.5. Analysis

3.5.1. GC conditions

flow rates (mL/min)		temperature    (°C)
helium:	25	injector:	200
hydrogen:	35	detector:	250
air:	250	column:	125
injection size:		1 µL
elution time:		1.5 min (vinyl bromide)

3.5.2. Peak areas are measured by an electronic integrator or other suitable means.

3.5.3. An internal standard procedure is used. The integrator is calibrated to report results in ppm for a 1-L air volume.

3.5.4. The amount must be corrected for the desorption efficiency.

3.6. Interferences (analytical)

3.6.1. Any compound having the same general retention time of vinyl bromide or n-heptane is an interference. GC parameters should be chosen to circumvent these interferences.

3.6.2. Retention time data on a single column is not considered proof of chemical identity. Samples over the PEL should be confirmed by GC/MS or other suitable means.

3.7. Calculations

3.7.1. Since the integrator is programmed to report results in ppm (at 25°C and 760 mm Hg, and corrected for desorption efficiency) for a 1-L air volume, the following calculation is used:

ppm vinyl bromide  =  A/B

where	A	=	ppm on report
	B	=	air volume

3.7.2. Add both charcoal tubes (if they were in series) before reporting the results.

3.8. Safety precautions

3.8.1. All work done with the solvents and with the vinyl bromide gas should be done in a hood.

3.8.2. Avoid any skin contact with all the solvents.

3.8.3. Vinyl bromide should be considered a human carcinogen, and all work with vinyl bromide should be done using appropriate "carcinogen" safeguards.

4. Backup Data

4.1. Coefficient of variation of analytical technique

The coefficient of variation was determined from multiple injections of analytical standards which covered a concentration range equivalent to 1.0 ppm to 10 ppm, based on a 5-L sample.

Table 4.1.
Analytical Precision

µg/mL	220	110	44	22
area	59020	31240	12550	5547
counts	58909	31328	12530	5417
	58673	30955	12350	5502
	58781	30266
	58846	30947	12477	5489
SD	151	481	110	66
CV	0.0026	0.016	0.0088	0.012
= 0.011

4.2. Sensitivity

The sensitivity is determined from the slope of the calibration curve shown in Figure 4.2.

     (5489 area counts)/(22 µg/mL)  =  250 area counts/µg/mL

4.3. Desorption efficiency

Three groups of six, Lot 106, charcoal tubes were respectively spiked with 5, 10, and 20 µL of a 400 µL vinyl bromide/mL CS₂ solution. The backup portion of the tubes had been removed prior to spiking. The tubes were allowed to equilibrate.

Table 4.3.
Desorption Efficiency

µg/sample	8.8	17.5	35
desorption	105	100	96
efficiency,	100	100	95
%	99	98	95
	111	98	98
	115	99	93
	100	104
	105	100	95

4.4. Storage test

The percent recoveries are not corrected for desorption efficiency. Samples were collected at 80% relative humidity. The loadings were approximately 10 µg/sample. One group of samples were stored at ambient temperature and a second group at reduced temperature. Three samples from each group were analyzed at intervals throughout a 16-day period. These data are presented graphically in Figures 4.4.1. and 4.4.2.

Table 4.4.
Storage Tests

storage time	% recovery
(days)	(refrigerated)			(ambient)
0	84.1	81.0	84.0	81.4	81.8	86.8
3	88.2	99.9	100.5	94.9	87.3	92.5
7	106.7	95.1	--	100.8	91.2	99.0
9	83.0	84.0	87.0	100.8	80.9	89.1
13	93.0	92.0	98.2	94.9	86.0	98.3
16	90.3	96.4	97.5	96.9	96.7	100.6

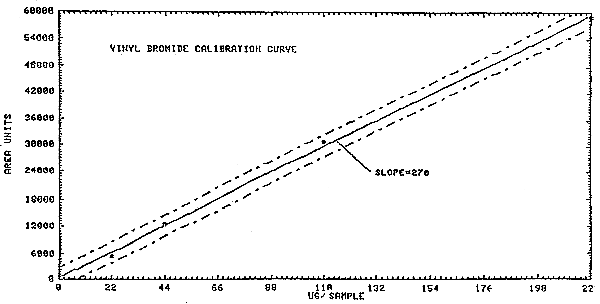

Figure 4.2. Calibration curve of instrument response to vinyl bromide.

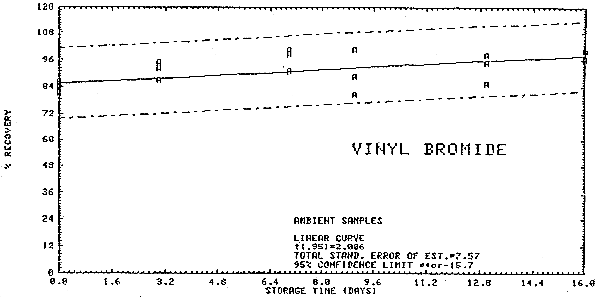

Figure 4.4.1. Ambient storage test of vinyl bromide.

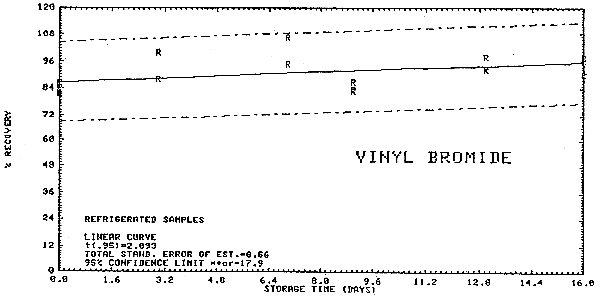

Figure 4.4.2. Refrigerated storage test of vinyl bromide.

5. References

5.1. "Current Intelligence Bulletin 28" NIOSH, 1978.

5.2. "The Condensed Chemical Dictionary", 8th Edition, 1971.
